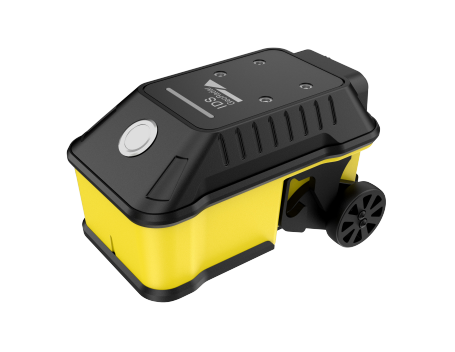

Leica IDS C-Thrue XS Concrete Scanner
Ultra-Compact GPR Solution for Concrete Inspection & Structural Imaging
Overview
The Leica IDS C-Thrue XS is a cutting-edge, ultra-compact ground penetrating radar (GPR) system designed for high-precision concrete inspection and non-destructive testing (NDT). Developed by Leica Geosystems and IDS GeoRadar, it is the smallest dual-polarized concrete scanning antenna available, delivering powerful performance in a handheld form factor.
Engineered for speed, accuracy, and accessibility, the C-Thrue XS enables professionals to detect rebar, post-tension cables, conduits, and voids in real time—even in tight or hard-to-reach areas.
Key Features
Dual-Polarized Radar Technology
- Simultaneous horizontal (HH) and vertical (VV) polarization
- Detects both shallow and deeper embedded objects in a single pass
- Improves accuracy in identifying rebar orientation and anomalies
Compact, Handheld Design
- Palm-sized and ultra-lightweight
- Ideal for:
- Tight spaces
- Walls and ceilings
- Confined or obstructed areas
- Reduces operator fatigue during extended use
High-Speed, Single-Pass Scanning
- Dual-channel data acquisition
- Detect multiple layers of reinforcement in one scan
- Maximizes productivity and reduces scan time
Real-Time Data Visualization
- Instant feedback during scanning
- Improves on-site decision-making
- Reduces need for extensive post-processing
BIM & CAD Integration
- Seamless integration into CAD and BIM workflows
- Export scan data for design, engineering, and documentation
- Enhances collaboration across project teams
Versatile Field Operation
- Compatible with:
- External controllers
- Telescopic poles
- Enables scanning in elevated or hard-to-access locations
- Adaptable across multiple jobsite environments
Technical Specifications
| Specification | Details |
|---|---|
| System Type | Handheld Ground Penetrating Radar (GPR) |
| Antenna Frequency | 2.0 GHz |
| Number of Antennas | 4 |
| Polarization | Dual (Horizontal + Vertical) |
| Radar Channels | 2 |
| Detection Depth | Up to ~100 cm (39 in) |
| Scan Density | Up to 10 scans/cm |
| Display Modes | B-scan, C-scan (radar tomography) |
| Positioning | Integrated encoder |
| Connectivity | LAN (to controller or system) |
| Dimensions | 145 × 83 × 80 mm |
| Environmental Rating | IP65 |
| Operating Temperature | -20°C to +50°C |
Performance varies depending on concrete composition, reinforcement density, and environmental conditions.
Applications
The Leica IDS C-Thrue XS is ideal for:
- Concrete scanning before cutting or coring
- Rebar and post-tension cable detection
- Structural inspections (walls, slabs, ceilings)
- Utility and conduit detection in concrete
- Infrastructure maintenance and rehabilitation
Benefits
- ✅ Ultra-portable handheld design for maximum flexibility
- ✅ Dual-polarization technology for enhanced detection accuracy
- ✅ Real-time results for faster decision-making
- ✅ Access to confined and elevated areas
- ✅ Seamless integration with BIM/CAD workflows
- ✅ Reduced labor time and improved productivity
Why Choose Leica IDS C-Thrue XS?
The C-Thrue XS stands out as a next-generation compact concrete scanner, delivering high-performance GPR capabilities in a handheld device. It is ideal for professionals who require:
- Mobility and ease of use
- High-resolution subsurface imaging
- Fast, reliable results in challenging environments
