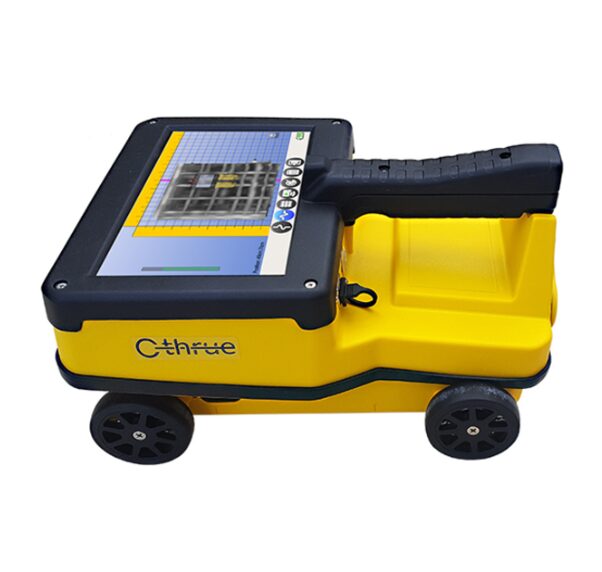

Leica IDS C-Thrue Concrete Scanner
Advanced GPR Solution for Concrete Inspection & Structural Imaging
Overview
The Leica IDS C-Thrue Concrete Scanner is a high-performance, all-in-one ground penetrating radar (GPR) system designed for non-destructive testing (NDT) of concrete structures. Developed by Leica Geosystems in collaboration with IDS GeoRadar, the system delivers real-time subsurface imaging, automated detection, and advanced 3D visualization.
The C-Thrue enables professionals to safely locate rebar, post-tension cables, conduits, voids, and embedded objects before cutting or drilling—significantly reducing risk and improving project efficiency.
Key Features
High-Resolution Dual Polarization Radar
- Uses horizontal and vertical polarization (HH + VV)
- Detects both shallow and deeper targets in a single pass
- Improves accuracy in identifying rebar orientation and anomalies
Deep Concrete Penetration
- Scans to depths of up to 80 cm (31.5 inches)
- Detects:
- Rebar (multi-layer)
- Post-tension cables
- Voids and cavities
- Conduits and embedded utilities
Real-Time Data Visualization & Augmented Reality
- Instant visualization of subsurface structures
- Optional augmented reality (AR) for 3D interpretation
- Enables faster, more informed decision-making in the field
Automated Detection & Reporting
- Automatic identification of:
- Rebar layers
- Voids and anomalies
- Generates automated reports and digital outputs
- Reduces reliance on manual interpretation
Virtual Pad Positioning System
- Laser-based positioning with reflective grids
- Eliminates need for manual layout grids
- Improves accuracy and repeatability of scans
Flexible & Field-Ready Design
- Lightweight and compact (~2.4 kg / 5 lbs)
- Operates on:
- Floors
- Walls
- Ceilings
- Compatible with telescopic pole for hard-to-reach areas
Integrated EM Detection
- Detects live AC power conduits (50/60 Hz)
- Enhances safety during drilling and coring operations
Technical Specifications
| Specification | Details |
|---|---|
| System Type | Ground Penetrating Radar (GPR) Concrete Scanner |
| Antenna Frequency | 2.0 GHz |
| Number of Antennas | 4 |
| Polarization | Dual (Horizontal + Vertical) |
| Radar Channels | 2 |
| Detection Depth | Up to 80 cm (31.5 in) |
| Scan Density | Up to 10 scans/cm |
| Display Modes | B-scan, C-scan (radar tomography) |
| Positioning | Virtual Pad (laser-based positioning system) |
| EM Detection | Integrated (50/60 Hz power detection) |
| Data Storage | 32 GB |
| Connectivity | USB, Wi-Fi |
| Battery | Li-ion, ~3-hour runtime |
| Weight | ~2.4 kg (5 lbs) |
| Dimensions | 285 × 200 × 160 mm |
| Display | 7” TFT multi-touch screen |
| Environmental Rating | IP65 |
| Operating Temperature | -20°C to +50°C |
Performance may vary depending on concrete composition and site conditions.
Software & Visualization
C-Thrue Software Platform
- Real-time radar data acquisition and processing
- Automatic feature detection and marking
- 3D visualization and tomography
- Augmented reality (AR) integration
- Multi-language support and automated reporting
Applications
The Leica IDS C-Thrue is ideal for:
- Concrete scanning before cutting or coring
- Structural inspections (bridges, tunnels, slabs)
- Rebar and post-tension cable detection
- Void and anomaly identification
- Infrastructure rehabilitation and renovation projects
Benefits
- ✅ Non-destructive testing (NDT) for safe operations
- ✅ High-resolution imaging with dual polarization
- ✅ Real-time results with minimal interpretation required
- ✅ Advanced 3D and AR visualization capabilities
- ✅ Portable and adaptable to any jobsite
- ✅ Integrated safety features (EM detection)
Why Choose Leica IDS C-Thrue?
The C-Thrue stands out as a premium concrete scanning solution, combining advanced radar technology, automation, and intuitive workflows into a single platform. It enables contractors, engineers, and inspectors to work faster, safer, and with greater confidence when dealing with reinforced concrete structures.
Call to Action (+1-808-210-8303)
Contact Subsurface Depot today to request a demo or quote and see how the Leica IDS C-Thrue Concrete Scanner can enhance your concrete inspection and subsurface imaging capabilities.
